Align Drones User Manual

Align logo
Align logo

Title

File Size

Download Link

Align M470 Super Combo - User Manual.pdf

16.4Mb

Download

Align M424 V2 Quadcopter Super Combo - User Manual.pdf

5.6Mb

Download

Align M480L Super Combo - User Manual.pdf

13.6Mb

Download

Align M690L Super Combo - User Manual.pdf

13.6Mb

Download

Align MR25_MR25P V2 - User Manual.pdf

27.3Mb

Download

Align F-16 SUPER350 - User Manual.pdf

4.8Mb

Download

Align M424 Quadcopter Super Combo.pdf

3.8Mb

Download

Align M470 KIT - User Manual.pdf

8.1Mb

Download

Align M480L KIT - User Manual.pdf

7.6Mb

Download

Align M690L KIT - User Manual.pdf

8.4Mb

Download

Align MR25_MR25P - User Manual.pdf

12.5Mb

Download

Align MR25X _ MR25XP - User Manual.pdf

14.4Mb

Download

Align T-REX 700 - User Manual.pdf

16.9Mb

Download

Align T-REX 800 - User Manual.pdf

8.7Mb

Download

Align - Taiwanese company founded in 1984 that in 2013 the beginning of production and quadrocopters and geksakopter series M. The most famous model - M480L and M690L.

Review of Align M690L: powerful 900-mm geksakopter for video from the air

Along with the M470 and M480L autumn released another model from the Taiwanese company multicopter Align. This time, instead they released quadrocopters geksakopter M690L. Let's find out how it differs from its 4-rotor counterparts.

Align M690L
Align M690L
  • Title: Align M690L Hexacopter
  • quadrocopters Type: ARF Kit / Super Combo Kit
  • Price: $ 1,500
  • Release Date: Autumn 2014

In fact, geksakopter Align M690L - it quadrocopter Align M480L, only with smaller propellers, but due to a larger number of motors with a higher power. In addition, the frame size was increased to 900 mm and the height is increased even more.

Since the frame design multicopter M470, M480L and M690L identical, but they differ only in cut sizes and Durga couple of things, we decided to bring a table of differences between these models. You can read it below:

Model Quadrocopters M470 Quadrocopters M480L Geksakopter M690L
Diameter of the frame  710 mm  800 mm 900 mm
propellers length 179 mm 190 mm 179 mm
Height 266 mm 430 mm 446 mm
Weight without battery 2500 g 2700 g 3400 g
The chassis is made up? No Yes Yes

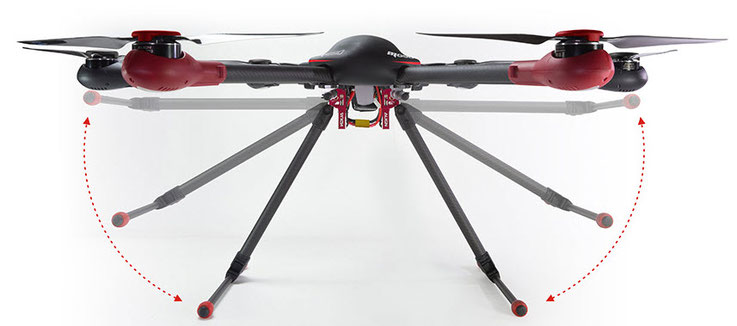

An example of the foldable landing gear during the flight
An example of the foldable landing gear during the flight

ALIGN M690L Video

Test video

Another video with this geksakotera and GoPro Hero 3

Assembling the copter

Specifications Align M690L

Quadrocopter

Frame diameter - 900 mm

propellers length - 179 mm

Height - 446 mm

Weight without battery - about 3400 g

Supported batteries - 5200-12000mAh

Flight time - 8-10 minutes on battery 5200mAh

Flight controller - APS-M



Accuracy flight

Vertical: ± 1 m

Horizontally ± 1 m



Max. flight speed

Vertical: 6 m / s

Horizontally 15 m / s

Max. height of 700 m

Max. rotation angle - 30 degrees

Input voltage controller - DC4.5V ~ 8.4V

controller Current consumption - <250mA @ 4.8V

Working frequency controller - 400Hz

Working Temperature - -20 ° ~ 65 ° C

power control unit

Input Voltage 13.2V ~ 25.2V (4S ~ 6S)

The operating frequency of 500KHz

Dimensions 62x35x26 mm

engines

Model BL4213 370KV

Input voltage DC 22.2V

Max. DC 25A

Max. 550W rated power

Quantity of the magnetic poles 14

Number of stator 12 mounts

Dimensions / weight F4xF52 × 33 mm / 185 g

conclusions

Of course, this geksakopter deserves attention. To some it may seem expensive (more than $ 1,500 for the assembly 'Super Combo'), but because of its flight characteristics, the possibility of modifying and stylish appearance, we are confident that he is worth the money.
