The DJI Phantom 2 Vision Plus review - Phantom Series crown

Phantom 2 Vision Plus - the latest model in the series Phantoms of the Chinese company DJI Innovations, which is known to everyone in the world quadrocopters. As the latest model series, the Phantom 2 Vision + has absorbed all the best that has been done to him in the previous models, plus got some substantial improvements. Let's see what it is.

DJI Phantom 2 Vision + (Plus)
DJI Phantom 2 Vision + (Plus)
  • Title: DJI Phantom 2 Vision + (Plus)
  • Series: Phantom
  • quadrocopter Type: RTF
  • Release date: April 2014
  • Price: $ 700

Design

Appearance quadrocopter has not changed compared to the Phantom 2 Vision, therefore, nothing to tell here. Big changes have affected the camera and its stabilization - read about it below.

Stabilization and the camera

The main difference Vision +, is the presence of the motorized joint (cardan suspension) that stabilizes video for all three corners.

It works in the following way: 3 gyroscopes define 3 angle possible motion quadrocopter (pitch / roll / yaw), and as soon as motion is determined hinge motors move the camera in the opposite direction, thus stabilizing the image, regardless of how the shakes quadrocopter.

cardan suspension
cardan suspension

The video below beautifully demonstrates the difference between the stabilization at 2 corners, without stabilization and the stabilization of the 3 corners:

The difference is noticeable to the naked eye. With this quality of stabilization, the use of Phantom 2 Vision Plus in professional video does not seem something so fantastic.

By the way, the stabilization of the camera can be turned off. This is called «FPV Mode» (kind of mode in the first person), which will allow you to see from the air to the ground as if you are personally on board quadrocopter. Stabilization mode is called «Non FPV Mode» (type mode is not the first person).

Motorized hinge attached to the quadrocopters with four dampers that absorb vibrations very well and cope with the so-called "Jello-effect" (also known as the "Rolling Shutter"), when the image is expanded or stretched disproportionately. And in the case of unexpected collisions and possible joint separation with the camera by quadrocopter are a couple of other bars that would prevent death chamber.

A camera mounted on the Phantom 2 Vision Plus is very decent. 1 / 2.3 "CMOS-sensor boasts a 14-megapixel camera and can take photos in 4384 × 3288 resolution, which can save in JPEG format, and the original RAW format. Here are some examples of photos taken with this quadrocopter (click to enlarge):

Luggage Phantom 2 Vision + can record high-definition (Full HD) format in 1080P (30 frames per second) and 1080i (60 fps), or in 720p (60 fps). The viewing angle can be selected between 85 and 110 degrees. In low light there is some grain, but it is the bane of all cameras that use CMOS-sensor instead of the CDD, including the famous GoPro.

Real-time video transmission to a tablet or smartphone, may occur in the 480p format with a resolution of 320 × 240 (15 frames per second) or 640 × 480 (30 fps). The higher the resolution you choose, the more slow update video online, which can lead to the fact that the video will be broadcast with some delay. The transfer is carried out via WiFi on 2.4GHz frequency, and stated operating range - 700 meters, although in practice should not rely on 400-500.

Video recorded on a microSD card, which is placed on top of the camera. It comes with a card to 4GB, but supported cards up to 32 gigabytes.

Battery

Compartment for lithium-polymer Phantom 2 Vision Plus the battery is located behind quadrocopter, she also has a battery capacity of 5200mAh. Charging is just over an hour, and the maximum flight time - 25 minutes.

Phantom 2 Vision Plus the battery
Phantom 2 Vision Plus the battery

The battery was named "smart battery" from the fact that the charging process, compensation and protection is built into the motherboard battery charge. It monitors the battery temperature, and if it is too cold or overheated, it will not allow it to charge. And if you forgot to turn off quadrocopter, then after 10 minutes of non-use it is off himself.

On the other hand, is associated with this problem is for those who want to buy an extra battery for Phantom 2 Vision Plus. The fact that the flight controller Naza P2V is configured in such a way that it should receive authentication codes from the battery, in order to earn quadrocopters motors. If the codes are not received (in the case, if you set a different, non-native battery of DJI), the motors do not work. Currently known 2 address this issue:

  • Replace the standard Naza P2V Naza M V2
  • Remove the battery from the motherboard and connect it directly to the quadrocopters. Then replace the flight controller Naza P2V on the other do not have, but it will be possible to use other batteries, not just branded by DJI.

Control

The control of DJI Phantom 2 Vision +, carried out by means the remote control, which features a mount for smartphones and tablets, the screen of which is transferred to all the information during quadrocopter flight: battery, GPS and WiFI signal, the number of exposures remaining, the state of the memory card, the information the distance from the takeoff point to the current position quadrocopter its flight altitude and speed.

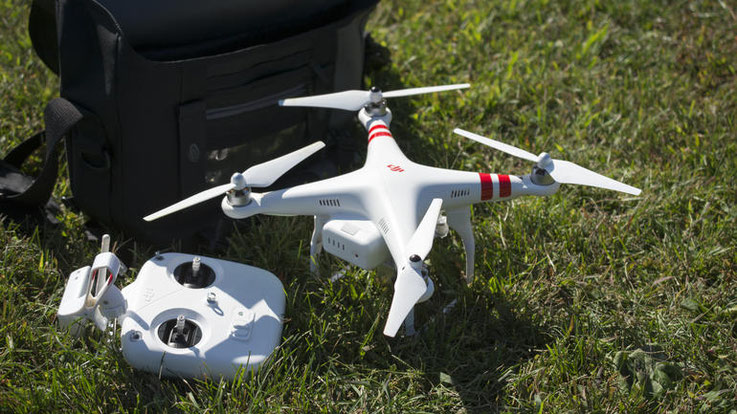

Phantom 2 Vision Plus remote control
Phantom 2 Vision Plus remote control

To get this information, you need only install a specially designed application of DJI on your smartphone or tablet (if it is on Android and iOS based) and connect it via USB to the remote control.

Specifications

Quadrocopter

Battery: branded lithium polymer battery capacity of 5200mAh
Weight (including battery and propeller): 1242g
Flight Precision Vertical: 0.8 m; Horizontally: 2.5 m
The maximum yaw rate 200 ° / a
The maximum tilt angle: 35 °
Maximum speed at take-off / landing: 6 m / s at takeoff, 2 m / s landing
Maximum flight speed: 15 m / s (not recommended)
diagonal length: 350 mm

Cardan suspension for the camera

Operating voltage in the static: 750mA; The dynamics: 900mA
Accuracy of adjustment ± 0.03 °
controllability of the angle of inclination: -90 ° -0 °
The maximum rotation speed Tilt: 90 ° / s

Camera

It works at 0 ℃ -40 ℃
Type of matrix 1 / 2.3 "
Number of pixels 14 Megapixels
Resolution 4384 × 3288 photos
video recording

  • 1080p (30fps)
  • 1080i (60fps)
  • 720p (60 fps)

Viewing angle of 110 ° / 85 °

Remote control

Operating frequency: 5.728 GHz-5.85 GHz
Range (in open space): CE: 400 m; FCC: 800 m
Receiver Sensitivity (1% PER) -93dBm
Transmitter power: CE: 25mW; FCC: 100mW
Operating voltage: 120 mA@3.7V
Built-in lithium-polymer battery. Operating voltage / capacity: 3.7V, 2000mAh

Extender of range

Working frequency: 2412-2462MHz
Range (in open space): 500-700m
Transmit Power: 20dBm
Power Consumption: 2W

The app DJI VISION

Operating system requirements of mobile devices: version iOS 6.1 or higher / version of Android 4.0 or higher

Support for mobile devices

  • Recommended devices based on iOS: iPhone 4s, iPhone 5, iPhone 5s, iPhone 6, iPhone 6 Plus, iPod touch 5 (supported, but not recommended: iPad 3, iPad 4, iPad mini)
  • Featured Android devices: Samsung Galaxy S3, S4, Note 2, Note 3, or smart phones with similar configuration

Video

The official presentation of Phantom 2 Vision Plus

Preparing for flight

Quadrocopter review and complete record of the flight test

Simply beautiful video shot with the Phantom 2 Vision +

Conclusions

DJI Phantom 2 Vision Plus is almost twice as expensive as its predecessor, but he got a new functionality. In particular this applies to the stabilizer for the camera, which allows you to take a much more smooth video.

On the other hand, to pay $ 500 more for stabilization - an expensive pleasure. Not everyone can afford to shell out that amount only in order to stabilize the video. Therefore recommend the DJI Phantom 2 Vision + those who we will not be engaged in professional video, but this professional quadrocopter camera can come to taste.
