Blade - an American company, HorizonHobby branch. Engaged in production quadrocopters and helicopters on the radio of different classes: nano-copter, copter small, medium-sized drones with cameras. Prices of nano- and micro quadrocopters higher than that of counterparts, but the cost of middle-class quadrocopters within the market average.

User guides for Blade quadcopters

Title

File Size

Download Link

Blade 180 QX HD BNF with SAFE - User Manual.pdf

2.5Mb

Download

Blade 200 QX BNF with SAFE - User Manual.pdf

1018.1kb

Download

Blade 350 QX RTF with SAFE - User Manual.pdf

6.2Mb

Download

Blade 350 QX2 BNF with SAFE - User Manual.pdf

6.9Mb

Download

Blade 350 QX2 RTF with SAFE - User Manual.pdf

6.9Mb

Download

Blade 350 QX3 AP Combo RTF C-Go2 - User Manual.pdf

4.4Mb

Download

Blade 350 QX3 BNF - User Manual.pdf

4.4Mb

Download

Blade 350 QX3 RTF - User Manual.pdf

4.4Mb

Download

Blade BNF with Fixed Mount - User Manual.pdf

6.6Mb

Download

Blade Chroma BNF - User Manual.pdf

8.2Mb

Download

Blade Conspiracy 220 BNF Basic - User Manual.pdf

1.8Mb

Download

Blade EFLH3080 User Manual.pdf

2.8Mb

Download

Blade FPV Inductrix 200 BNF User Manual.pdf

2.6Mb

Download

Blade Inductrix BNF - User Manual.pdf

1Mb

Download

Blade Inductrix FPV BNF - User Manual.pdf

8.9Mb

Download

Blade Inductrix FPV RTF - User Manual.pdf

8.9Mb

Download

Blade Inductrix RTF - User Manual.pdf

1Mb

Download

Blade Mach 25 FPV Racer BNF Basic - User Manual.pdf

3.4Mb

Download

Blade mCX2 BNF User Manual.pdf

10.6Mb

Download

Blade mCX2 RTF User Manual.pdf

10.6Mb

Download

Blade mQX BNF - User Manual.pdf

9.4Mb

Download

Blade Nano QX 3D BNF - User Manual.pdf

9.5Mb

Download

Blade Nano QX BNF with SAFE - User Manual.pdf

6.8Mb

Download

Blade Nano QX FPV RTF with SAFE - User Manual.pdf

1.6Mb

Download

Blade Nano QX RTF with SAFE - User Manual.pdf

6.8Mb

Download

Blade Pico QX RTF with SAFE - User Manual.pdf

5.4Mb

Download

Blade Tandem Rescue BNF User Manual.pdf

2.3Mb

Download

Blade Theory Type W FPV Equipped BNF Basic - User Manual.pdf

1.2Mb

Download

Blade Vortex 150 Pro BNF Basic User Manual.pdf

292.1kb

Download

Blade Vortex 250 Pro BNF Basic User Manual.pdf

3.5Mb

Download

Blade Zeyrok BNF Green - User Manual.pdf

1.4Mb

Download

Review of Blade 350 QX: quadrocopter in three versions (QX, QX2 and QX3)

In the summer of 2013 I came quadrocopter Blade 350 QX - he was supposed to be a rival DJI Phantom 1 market quadrocopters cameras for amateurs. Will it impose a competition? Let's see.

Equipment

Before proceeding to the review Blade 350 QX, let's look at some trim levels sold quadrocopter.

Complete set just 2: RTF and BNF
Complete set just 2: RTF and BNF

RTF (Ready-to-Fly) - full complete set that includes:

  • quadrocopter
  • Lithium-polymer battery
  • Charger for him and balancer
  • 4 spare propeller
  • Remote Control
  • Mount for GoPro camera
  • Shock absorbers for the camera
  • remote control Spektrum DX5E
  • 4 AA batteries for the remote control

BNF (Bing-to-Fly) equipment includes

  • quadrocopter
  • Lithium-polymer battery
  • Charger for him and balancer
  • 4 spare propeller
  • Remote Control
  • Mount for GoPro camera
  • Shock absorbers for the camera

As you can see, the difference between the completeness of the presence or absence of the remote control.

Review

The two main features of quadrocopters 350 QX - the presence of GPS module and SAFE technology from Blade. To begin with GPS systems.

quadrocopters 350 QX
quadrocopters 350 QX

The two main features of GPS is used for several purposes quadrocopters. Firstly, it allows him to find the way home (original flight point), the loss of signal or other interference. Second, thanks to the Global Positioning System, 350 QX can hover and fly much more stably and smoothly to photos and videos obtained more quality.



SAFE stands for Technology Sensor Assisted Flight Envelope and is responsible for flight modes quadrocopters and its stability in flight. Manage copter can be in the following modes: - the presence of GPS module and SAFE technology from Blade. To begin with GPS systems.

Smart Flight Mode. The so-called "smart flight mode." In this mode quadrocopter flies smoothly, degree of its torsion or substantially limited pitch (less than 15 °), and the height is kept the same level. This mode also uses GPS. It is ideal for those who are going to shoot a video from the air using QX 350.



Stability Flight Mode. In this mode, holding off a height, but it remains on GPS. The maximum pitch angle and rotation brought up to 45 degrees. Thus quadrocopter more manageable, but it is still stable in the air.



Agility Flight Mode. In this mode, disable all advanced features and only you are responsible for the behavior of quadrocopters in the air. Manage copter in this mode difficult, but very interesting!

Quadrocopters also equipped with LEDs - they allow to run it at night:

QX 350
QX 350

Propellers at 350 QX - commutatorless, which also increases the overall strength and stability in flight:

As for the camera, then it is no complete. However, the mount (cardan suspension stabilizes the camera on two angles) and dampers are specifically designed for Action cameras GoPro. However, now on the market, a host of clones of the GoPro, so if you do not have this camera and want to shoot video - you can get one of the clones GoPro, they are much cheaper.

Action cameras GoPro
Action cameras GoPro

Model Blade 350 QX2

Some time after the release of the original version, there was a modification of the official called the Blade 350 QX2. Compared with the original, it has changed a few things.



Firstly, in the antenna extended version QX2, resulting in increased control quadrocopters radius.



Second, the lithium-polymer battery capacity of 2200mAh was replaced by the lithium-polymer battery capacity of 3000mAh, which increased the travel time to 15 minutes on average.



Third, it was made a general update firmware quadrocopters.



And fourthly, it is possible to buy with quadrocopters CGO1 camera. This set is called «Combo». The camera can broadcast the video online on Android or iOS-device at a frequency of 5.8Ghz. Video is shot in 1080p resolution (30 in / sec) to AVI format. The quality of camera shot, see "Video", and below you can see an example of a photograph taken CGO1 (click to enlarge):

Model Blade 350 QX3

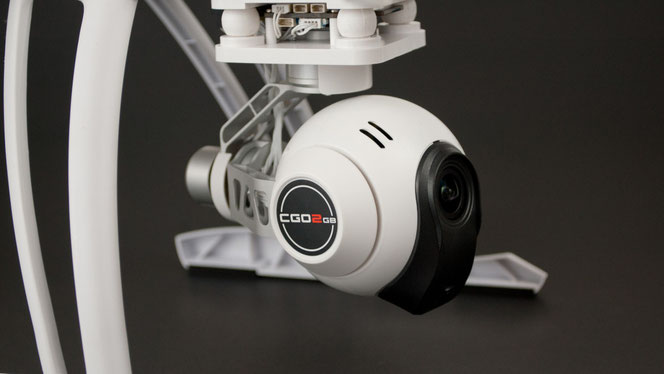

At the end of 2014 there was a further new version - 350 QX3. Its main difference from the previous model is the new camera CGO2, which is integrated with the new gimbal suspension, which stabilizes the camera in three corners:

new camera CGO2
new camera CGO2

Camera Specifications see below, and below - examples of photos taken CGO2. The difference with CGO1 visible to the naked eye (click to enlarge):

Included also is a microSD memory card of 8 GB.

In addition, the new version quadrocopters also been updated firmware, and made a few other minor updates.

Specifications

Quadrocopters

Dimensions: 465 x 465 x 138 mm

Diameter: 350 mm

Weight: 760 g

Motors: commutatorless, 1100Kv

Power Supply: Li-Polymer battery with a capacity of 3S 11.1V 2200mAh / 3000mAh

Flight time: 15 minutes

Charging time: more than an hour

Cardan suspension: GB200

Camera (CGO1 / CGO2)

Working medium temperature: 50 ° C -10 ° C

Video resolution: 1080p

Frame frequency

CGO1: 30 f / s

CGO2: 60 or 48 f / s

Video Format: AVI (H.264)

Audio Format: AAC

Picture Resolution:

CGO1: 1920 × 1080

CGO2: 4920 x 3264





Picture Format: JPEG

Viewing angle:

CGO1: 120 °

CGO2: 150 °

Support for memory cards: microSD, 16 GB

Matrix: 1 / 2.7 "(CGO1)

Aperture: F2.8 / F3.0 (CGO1)

Video transmission Format: QVGA: 330 × 240, 30 f / s (CGO2)

Radius tilt gimbal suspension (CGO2): -90 ° to + 45 °

The radius of rotation of the gimbal suspension (CGO2): ± 45 °

Remote control

Model: Spektrum DX5E

Number of Channels: 5

Operating Frequency: 2.4 Ghz

Video

Review of Blade QX 350 quadrocopters in English

Unpacking, assembly and preparation for flight. Official video

Blade 350 QX against DJI Phantom 1

Compare Dji Phantom 2 Blade 350QX

Flight modes QX 350. Official video

Blade 350 QX at a height of: the video with GoPro Hero 3 Black Camera

Conclusions

Certainly, Blade 350 QX good value for money. This quadrocopter equipped with all the features that are necessary radio-controlled drone with a camera: GPS, suspension, stabilization, video online, long-range broadcast (over 300 meters). At the same time, the price of even the last modification - 350 QX3 in the range of $ 500 (without camera).



Should I take Blade 350 QX? Certainly. Is it better to 350 QX in last modification than DJI Phantom 1? Yes. Worse than the DJI Phantom 2 Vision and Vision Plus? It is difficult to say - it depends on many factors, including the fact a lot or a little for you to shell out an extra $ 200-300 for any suspension for quadrocopters.
